HIGH RF POWER CONVOY
The HIGH RF POWER CONVOY system is a powerful jamming system designed to protect military convoys or VIP vehicles. It works by disrupting remote detonation signals (RCIED) through the transmission of high-frequency energy covering multiple bands. It is typically mounted on SUVs equipped with advanced antennas and transmitters to secure the entire movement area. It features high capability and immediate response against electronic threats in challenging field environments.
|
|
||
|
HIGH RF POWER CONVOY JAMMERS |
||
|
|
||
|
The most powerful radio jammer available on the market! Convoy IED Jammer is designed to protect convoys against RCIED threats and drone attacks. Convoy RCIED Jammer can protect single targets or groups of moving objects. The factory can provide customization of various RCIED jammer solutions based on customer specific requirements and applications |
||
|
List of jammed devices |
||
|
- All types of wireless communications |
||
|
- Walkie-talkie |
||
|
- RFID |
||
|
- All bands and technologies mobile phones including 4G, 5G and 6G |
||
|
- Satellite phones and terminals |
||
|
- All bands GNSS frequencies |
||
|
- All bands Wi-Fi and WLAN |
||
|
- Bluetooth |
||
|
- Other remote radio-controlled devices |
||
|
DESCRIPTION |
||
|
These systems are typically used for critical security purposes, such as protecting VIP convoys from remotely detonated improvised explosive devices (IEDs) or unauthorized drones. The numerous rooftop antennas form part of an omnidirectional jamming system capable of blocking a wide range of radio frequencies, including mobile phone, GPS, and Wi-Fi signals. |
||
|
Key Features of this system: |
||
|
Basic vehicle: |

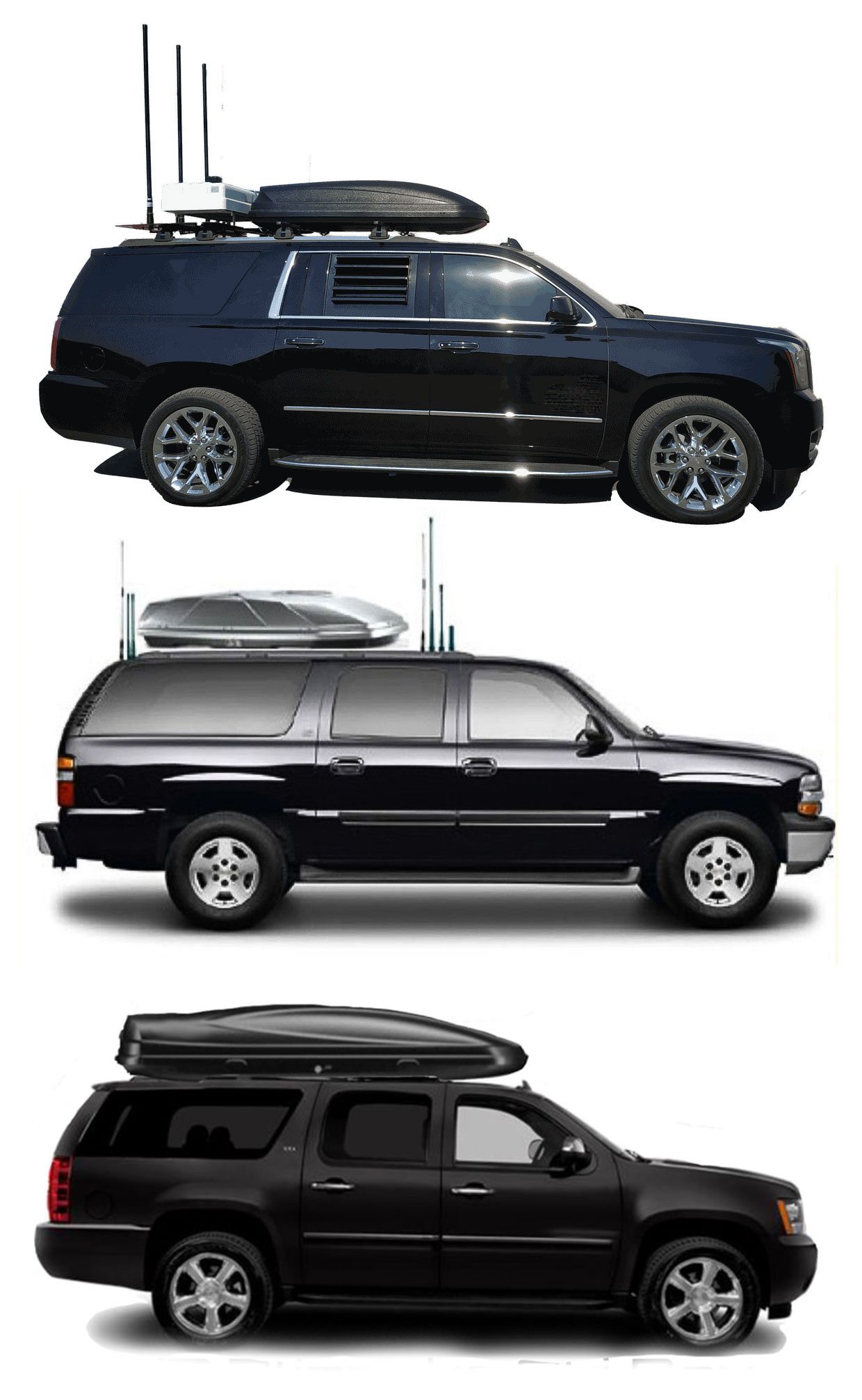

Typically, a heavy SUV built on the GMT900 platform, chosen for its spacious interior and ability to support the weight of the jamming equipment. |
|
|
Jamming capability: |
These systems feature integrated detection and jamming units, covering a frequency range from 20 MHz to 6000 MHz. |
|
|
Control Center: |
Operators typically manage the system via a central control panel located inside the vehicle. |
|
|
Roof Equipment: |
In addition to the antennas, the roof box often contains cooling systems and power units necessary to operate the high-power jammers. |
|
|
MAIN TECHNICAL PARAMETERES |
||
|
Frequency band, MHz |
20+7200 |
|
|
Number of frequencies subbands (transmitter modules) |
Up to 48 pcs depending on customer specification. Modular design of the system |
|
|
Type of antennas |
External vehicle omnidirectional |
|
|
Total RF output power, W |
Up to 3500 W, according to customer requirements. Total RF output power is divided by the frequency subbands depending on customer specification |
|
|
Mode of interference |
Barrage |
|
|
Input Power supply |
24 or 48 VDC from an additional DC generator |
|
|
Operational time of the jammer |
Unlimited when the DC generator is running |
|
|
Working temperature |
-20 °C to 55 °C |
|
|
Remote control function |
Yes |
|
|
Other features |
Possibility for inside or outside vehicle mounting |
|
|
Protection distance |
Depending on the RF output power of the activating transmitter, distance between the activating transmitter and receiver, and topographical characteristics. |
|
|
Individual control of the modules |
||
|
Group control of all modules |
||
|
LED indicators for module status and malfunctions |
||
|
e communication channel (windows) for in-convoy |
||
|
Service communication |
||
|
Control of the output RF power |
||
|
Control interface to all modules |
||
|
|
||
