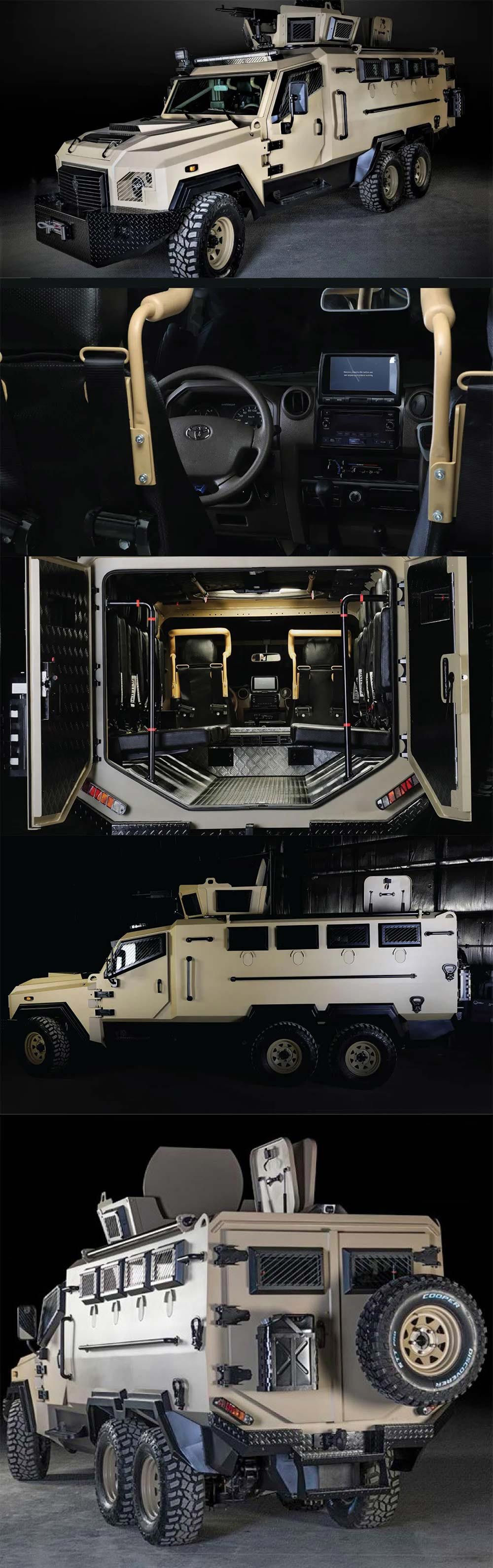

ARMORED PERSONAL CARRIER (RHD 6x6)
The Armored Personnel Carrier is a state-of-the-art tactical vehicle designed to ensure maximum protection, mobility, and operational efficiency in the most demanding environments. Built to ballistic standards and tested against STANAG Level 4 threats, it provides unmatched survivability against armor-piercing rounds, mines, and explosive devices.
Its six-wheel drive system combined with a specialized Run-Flat technology guarantees continuous mobility even under fire, while the reinforced steel structure and multi-layer ballistic glass offer comprehensive shielding for personnel. The vehicle integrates advanced features such as dual air-conditioning units, siren and public address systems, smart electronic locks, and enhanced radiator and battery protection.
|
|
|
ARMORED PERSONAL CARRIER (RHD 6x6) |
|
|
|
Specification |
|
This carrier is not just a means of transport, it is a mobile fortress, engineered to deliver safety, reliability, and tactical superiority. Whether deployed in combat zones, peacekeeping missions, or high-risk operations, it ensures that personnel arrive securely and mission-ready. |
|
OPAQUE AREAS |
|
All opaque areas, including the roof, are protected against the following and all lesser weapons/ammunition at a 90° impact angle in accordance with the above specifications. |
|
- Caliber 7.62 x 39 mm |
|
- Caliber 5.56 x 45 mm |
|
- Caliber 7.62 x 51 mm |
|
TRANSPARENT AREAS |
|
All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ammunition at a 90° impact angle in accordance with the above specifications. |
|
- Caliber 7.62 x 39 mm |
|
- Caliber 5.56 x 45 mm |
|
- Caliber 7.62 x 51 mm |
|
|
|
Armoring design: |
|
- The armoring is integrated with the vehicle's structure and is self-supporting to avoid excessive stress on the vehicle's original structure. |
|
- The armoring around the driver's position is fitted with large, flat ballistic glass to maximize the driver's field of vision. |
|
- The interior armor frame provides overlap for large-surface armoring components such as the door armor plates and the windows. |
|
- Hinge mounting points are reinforced in both the pillars and the doors where applicable, ensuring the door armoring is supported by the pillar armoring. |
|
- Heavy-duty hinges with built-in door stops. |
|
- All doors are fitted with electronically controlled interlocking high-security safety locks. Additional manual bolt locks are available on all doors. |
|
- Fuel tank, battery, and ECU are protected with steel armor plates. |
|
- Special run-flat tire system for 7 wheels, including the spare wheel. All wheels, including the spare, are fitted with a run-flat system rated at least 50 km/h at a speed of 80 km/h. |
|
Standard Features |
|
- Entire perimeter protection of the passenger compartment. |
|
- High-quality multi-layer bullet-resistant glass. |
|
- Integrated access control. |
|
- Protection for radiator, battery, and electronic control module. |
|
- Reinforced door hinges and other critical structural points. |
|
- Heavy-duty smart locking system designed for cash-in-transit use. |
|
- Vehicle security system accessible from the front cabin. |
|
- Side door access to the escort compartment from outside. |
|
- Two (2) AC systems. |
|
- Siren operated via switch by the driver. Two red/blue signal flashing lights integrated in the front grille. |
|
- Public address system (driver and co-driver can hear from outside) and Intercom system between driver and security compartment. |
