Product Details

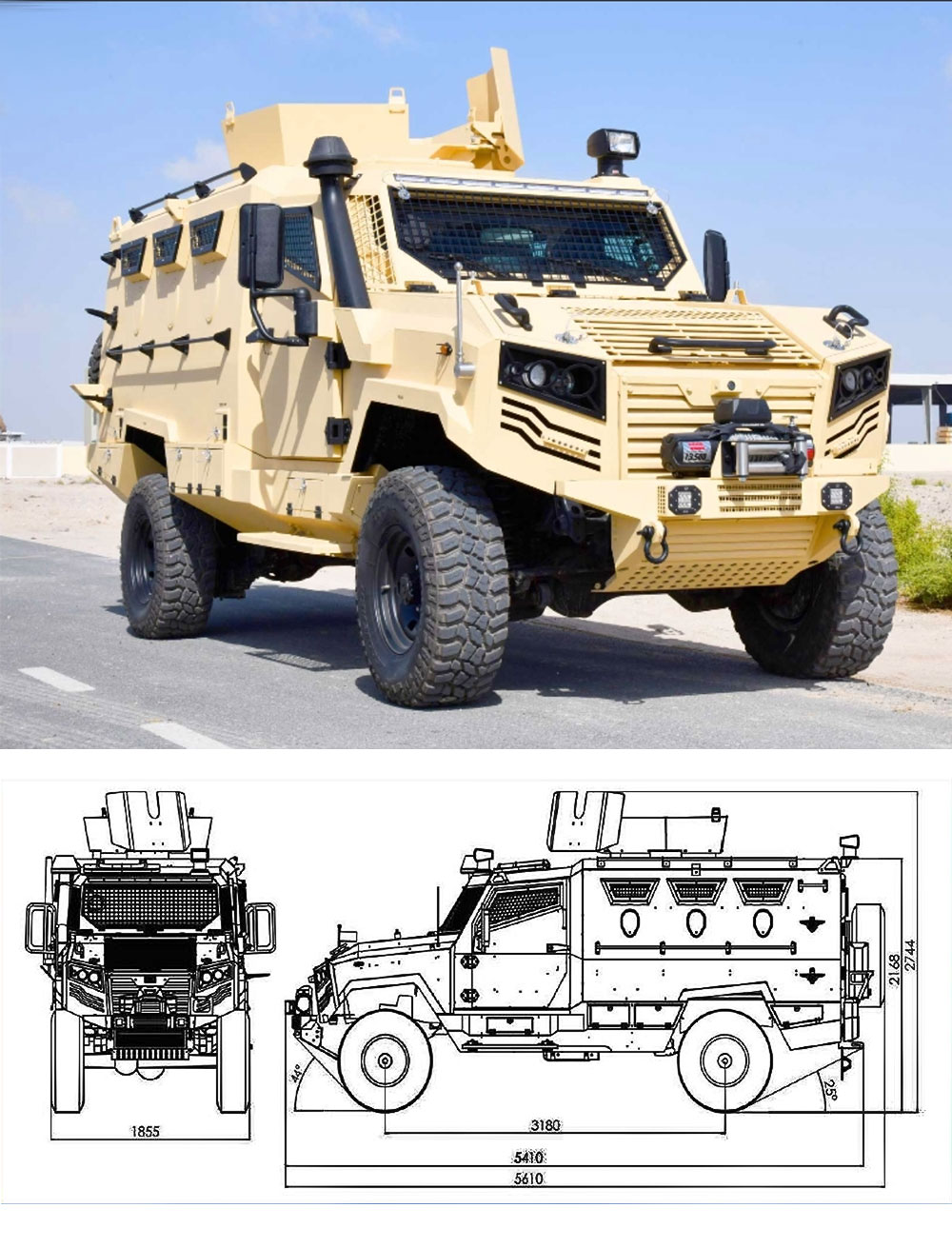

ARMORED PERSONAL CARRIER (3DR)

Key Features:

The Armored Personnel Carrier is designed for use in a wide range of military roles. It offers high levels of survivability, stability, mobility, and firepower. The vehicle features a modular design and scalable levels of ballistic and mine blast protection. The armored personnel carrier is constructed with certified ballistic material designed to resist incoming ballistic threats from any angle. The vehicle's interior is customizable to accommodate communication systems and even emergency medical support equipment (field ambulance). Off-road tires with a run-flat system and narrow turning radius make the Armored Personnel Carrier ideal for any mission.

Optional Equipment & Accessories

-  Strobe Light Systems

-  Siren/PA/Intercom system

-  Fire Suppression System

-  Blast Resistant Seats

-  Roof Mounted Light Bar

Specification

Seating

2+6

GVW (Kg)

5650

Payload (Kg)

600

Engine

4.5 L V8 8 Cyl Diesel

4.2 Inline 6 Cyl Diesel

4.0 L V6 6 Cyl Gasoline

Engine Power (HP/KW)

203/151

126/94

228/170

Torque (N-m)

430

280

360

Transmission

5 Speed ​​Manual

Power to weight ratio

36 HP/ton (27 KW/ton)

22.3 HP/ton (17 KW/ton)

40 HP/ton (30 KW/ton)

Alternator

1x150 amps

1x80 amps

1x130 amps

Suspension

Front: - Dependent-coil Spring

Rear: - Dependent-leaf Spring

Brakes

Front: - Hydraulic disc brake

Rear: Hydraulic drum brake

Max Speed ​​(kmph)

120

Min TCD (m)

14.4

Wheelbase (mm)

3180

Wheel track front (mm)

1550

Wheel track rear (mm)

1460

Overall width (mm)

1855

Overall height (mm)

2168 (hull)

Overall length (mm)

5610

Tyres

LT285/75/R16

Spare wheel provision

Yes

Approach/departure angle (Deg)

44/25

Ground clearance (mm)

230

Fuel tank capacity (L)

130

Electrical

12 V
