40 MM AUTOMATIC GRENADE LAUNCHER

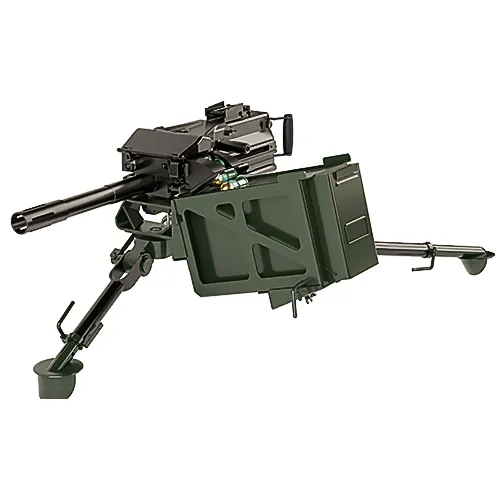

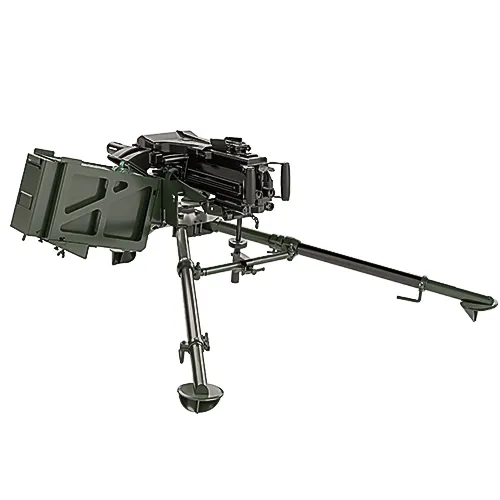

This large-caliber automatic weapon is designed to deliver powerful, sustained fire support in military operations. Featuring a robust rectangular receiver, reinforced barrel assembly, and a tripod mount with stabilizing feet, it ensures maximum stability and accuracy during ground deployment. The matte dark green finish enhances durability and resistance to harsh environments. Engineered for reliability and efficiency, this system provides superior firepower for defensive and offensive missions, making it a critical asset in modern combat scenarios.
|
|
|
|
40 MM AUTOMATIC GRENADE LAUNCHER |
|
|
|
|
|
DESCRIPTION |
|
|
The 40 MM AUTOMATIC GRENADE LAUNCHER is a fully automatic, blowback operated, air-cooled machine gun. Deployable from a tripod for ground use or mobile from vehicles or boats by the standardized interface. M430 round will pierce 2" (50mm) thick armor plate. It can fire between 1,500- 2,200 meters effectively. |
|
|
TECHNICAL INFORMATION |
|
|
Caliber |
40mm x 53 (HV) |
|
Feed Mechanism |
Belt fed from left side |
|
Length |
1090 mm |
|
Height |
225 mm |
|
Weight |
35 kg without mount & tripod |
|
Crew |
3P |
|
Muzzle Velocity |
240 m/s |
|
Effective Range |
Approx. 1500 m |
|
Principle of Operation |
Recoil-operated open bolt |
|
Firing Mode |
Safe / Full Automatic |
|
Width |
340 mm |
|
Barrel Length |
415 mm |
|
Ammo |
HE, HEDP, TP, TRT |
|
Number of Grooves |
18 and/or 24 |
|
Rate of Fire |
280-380 rpm |
|
Maximum Range |
Max 2000 m |
