DAY OPTICAL SIGHT

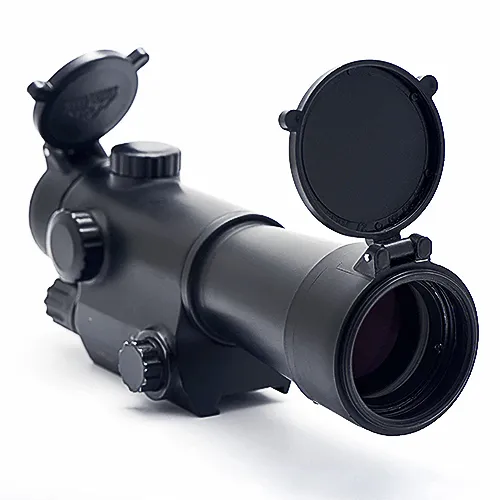

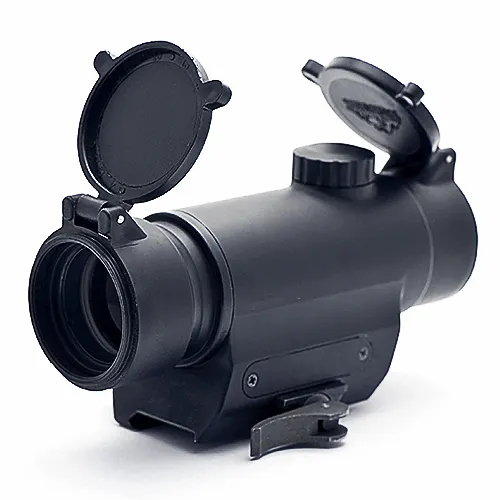

his advanced optical scope operates in daylight conditions and is designed to provide high aiming accuracy and rapid target acquisition. It features a robust cylindrical body with folding lens covers, as well as adjustment knobs for elevation, tilt, and brightness, giving the user complete control over field performance.
|
|
||
|
|
||
|
DESCRIPTION |
||
|
The DAY OPTICAL SIGHT red dot scope is a rugged scope designed for both professional and recreational use. It features a CNC-machined aluminum body. |
||
|
Built to the highest-grade military standards, The Day Sight is designed to ensure rapid target acquisition at close and medium combat distances. It has low power consumption and manual adjustment of the reticle illumination intensity. |
||
|
The Day Sight can be utilized in extremely harsh weather conditions. |
||
|
Key Features |
||
|
Optics: |
Features a 2 MOA contrast-free red dot for fast and accurate target acquisition. |
|
|
Construction: |
The body is CNC-machined from a single piece of aluminum, making it resistant to shocks and environmental factors. |
|
|
Illumination: |
Offers multiple brightness levels and is compatible with night vision devices. |
|
|
Power: |
Typically operates on a single AA battery. |
|
|
Mounting: |
Often comes with a built-in mounting bracket or a specialized mounting bracket such as the ADM 203. |
|
|
TECHNICAL INFORMATION |
||
|
Magnification |
≥ 3.5 |
|
|
Objective equivalent focal length |
100 mm |
|
|
Field of View |
≥ 6.5° |
|
|
Resolution |
≤ 12 arcsec |
|
|
Entrance pupil diameter |
28 mm |
|
|
Eyepiece diopter adjustment |
from-0.5 to -1 dpt |
|
|
Exit pupil diameter |
≥ 6 mm |
|
|
Exit pupil relief |
60 mm |
|
|
Overall dimensions (L x W x H) |
130 x 61 x 69 mm (without eyepiece) |
|
|
Weight |
≤ 420 g |
|
|
Operation temperature |
From -50°C to +50°C |
|
|
Storage temperature |
From -56°C to +65°C |
|
|
Mounting method |
MIL-STD-1913 (Picatinny rail) |
|
|
Power supply |
1 x 1.5 V AA alkaline Or 1 x 1.2 V AA rechargeable battery Or 1 x 3.6 V AA lithium battery |
|
