40MM LOW VELOCITY

comprehensive collection of military-grade ammunition and non-lethal cartridges, including rifle rounds, large-caliber shells, 38mm and 40mm CS gas cartridges, smoke rounds, rubber projectiles, and high-explosive grenades. Designed for diverse operational needs, this range highlights precision engineering, reliability, and versatility across combat, training, and crowd-control applications.


40MM LOW VELOCITY

DESCRIPTION
a comprehensive family of 40mm grenade ammunition, typically used with low-velocity handheld launchers like the M203 or M320, and high-velocity vehicle-mounted systems like the Mk 19.
Ammunition Type: Practice Rounds (Blue/Lavender):	Designed for training, featuring low-pressure proofing, drill dummies, and markers.
Smoke Rounds (Green):	Used for screening and obscuring, available in red, green, white, and red phosphorus.
Combat Rounds (Gold):	Includes High Explosive (HE) for personnel and High Explosive Dual Purpose (HEDP) for penetrating lightly armored vehicles.
Velocity:	These rounds typically come in Low Velocity (LV) for handheld launchers and High Velocity (HV) for vehicle-mounted machine guns.
Key Specifications
Propulsion:	Most use a High-Low Propulsion System, which keeps recoil low enough for infantry use while still providing effective range.
Velocity Families:	- Low Velocity (LV): Muzzle velocity of ~78–84 m/s; effective up to 400 meters. - Medium Velocity (MV): Intermediate rounds (~100 m/s) with ranges up to 800 meters. - High Velocity (HV): Fired from machine guns at ~240 m/s; effective range exceeds 2,000 meters.
Safety Mechanisms:	Modern rounds feature arming distances (e.g., 14–28 meters) to ensure they do not explode too close to the user.

40MM LOW VELOCITY
TECHNICAL INFORMATION

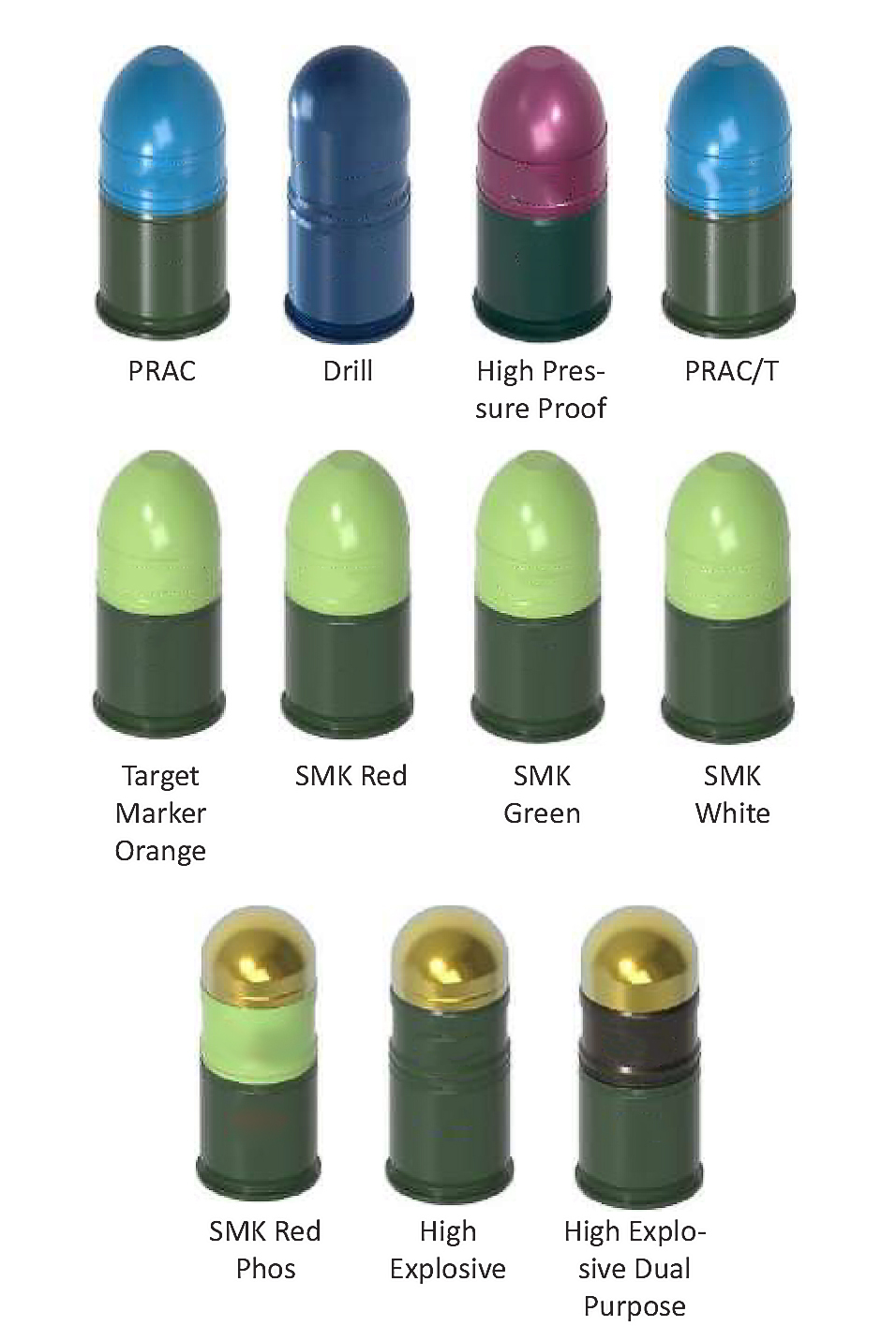

Item	Prac	Drill	HP Proof	Practice Tracer	TM Orange	Red Smoke	Smoke Green	White Smoke	Smoke Red Phos	HE	HEDP
Model Number	M0721	M2115	M2114	M9602	M8410	M1214	M1215	M1216	M8931	M848	M9115
Length (mm)	93	103	93	93	96	96	96	96	103	103	103
Round Mass (g)	230	230	230	230	219	219	219	219	228	232	230
Operating Temperature	-20°C to +70°C
Shelf Life	10 Years
Performance				4 sec Burn Time	20 sec Burn Time	20 sec Burn Time	20 sec Burn Time	20 sec Burn Time	1,5 m Scat tering Radius	5 m Casualty Radius	5 m Casual ty Radius 50 mm RHA Penetration
Fuze										M9033 PD
No Arm Distance										9 m
All Arm Distance										28 m
Muzzle Velocity	76 m/s
Maximum Range	400m
IMDG Explosive Class	1.3C	NA	1.3C	1.3C	1.3G	1.3G	1.3G	1.3G	1.2G	1.1E	1.1E
UN Code	0417	NA	0417	0417	0016	0016	0016	0016	0009	0006	0006

APPLICATION
Round	Prac	Drill	HP Proof	Practice Tracer	TM Orange	Red Smoke	Smoke Green	White Smoke	Smoke Red Phos	HE	HEDP
Inert Practice for Weapon Training		X
Live Practice for Shooting Training	X
Practice Tracer				X
Weapon Accept-trance			X
Target Marking/ Signal/ Comms					X	X	X	X
Trench Clearing/ Smoke Screen									X
Anti-Personnel/Light Armored Vehicles										X	X
Armored Steel/ Fortified Bunkers											X

Product Details

40MM LOW VELOCITY
