NIGHT VISION MONOCULAR
The Night Vision Monocular is an advanced optical device engineered to deliver clear and precise vision in low-light or complete darkness. Its compact and lightweight design ensures ease of use, whether handheld or helmet-mounted. Equipped with high-quality lenses and precise adjustment mechanisms, it enables rapid target acquisition while maintaining image clarity. Built with rugged, weather-resistant housing, it guarantees reliable performance in tactical and field operations, making it an ideal solution for night missions, surveillance, and reconnaissance tasks.
|
|
||
|
NIGHT VISION MONOCULAR |
||
|
|
||
|
DESCRIPTION |
||
|
- Night vision Monocular is a universal device for night vision. It can be used for individual night observation with magnification 1x and full field of view wider than 50°. It can be used to find, recognize and identify low-illuminated and low-contrasting targets. The monocular can function in conditions of natural night light because the source of illumination of the object is the light from the night sky, in the closest IR area of the spectrum. |
||
|

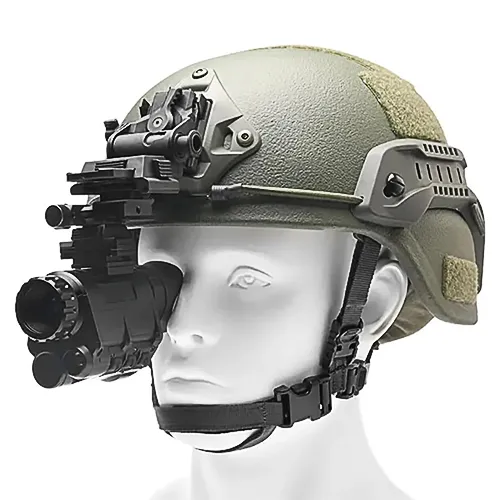

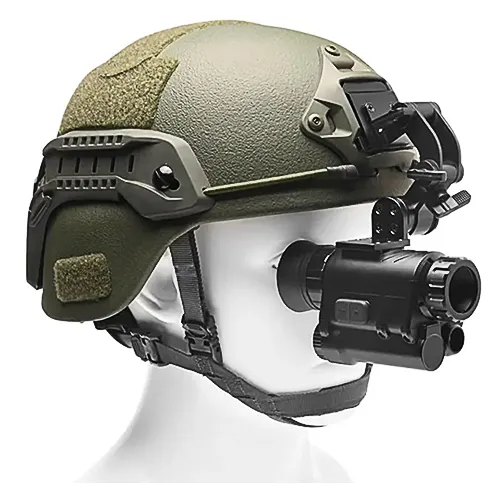

- The observation with the monocular is made when it is mounted to a facemask, helmet mount or used manually. When an a-focal magnifier is mounted in front of the objective the device turns into a night monocular with a 3x, 4x or 5x magnification and a full field of view more than 10°, 7° and 4.5° respectively. |
||
|
- With its help, low-illuminated and low-contrast objects (targets) can be detected, recognized, and identified. The device can be used handheld, mounted on a face mask, or on a helmet interface mechanism. It can also be mounted on a MIL-STD-1913 Picatinny rail and used in combination with night vision-compatible sights. |
||
|
Key Features |
||
|
Device Type: |
It is a universal, single-tube night vision device designed for individual observation and reconnaissance. |
|
|
Versatility: |
This model is designed for multiple uses, including as a handheld unit or head-mounted for hands-free operation. |
|
|
The night vision monocular can serve the following tasks: |
||
|
- Field observation and patrolling. - Tactical and strategic surveillance. - Field reconnaissance. |
||
|
TECHNICAL INFORMATION |
||
|
Magnification |
1x |
|
|
Objective equivalent focal length |
23.8 mm |
|
|
Field of View |
43 |
|
|
F-number |
1.3 |
|
|
Focus range |
0.25 m ± |
|
|
Eyepiece diopter adjustment |
From +4 to -6 diopters |
|
|
Exit pupil diameter |
8 mm |
|
|
Exit pupil relief |
25 mm |
|
|
Calculated performance range |
||
|
Detection range |
210 m + 350 m |
|
|
Orientation range |
180 m + 290 m |
|
|
Recognition range |
84 m + 140 m |
|
|
Identification range |
40 m + 65 m |
|
|
Power supply |
1 x 1.5 V AA alkaline battery or 1 x 1.2 V AA rechargeable battery or 1 x 3.6 V AA lithium battery |
|
|
Overall dimensions (L x W x H) |
103 x 40 x 64 mm (without the eyecup) |
|
|
Weight |
≤ 315 g (without the battery) |
|
|
Operation time |
40 hours (alkaline), 20 hours (rechargeable), 65 hours (lithium) |
|
|
Operating temperature |
From -50 to +50°C |
|
|
Storage temperature |
From -56 to +65°C |
|
