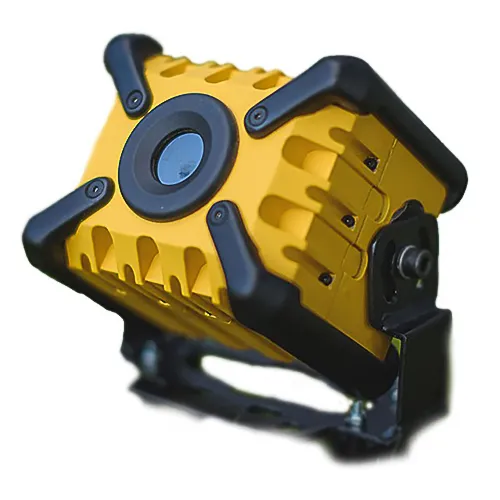

Ruggedized Thermal Imaging Driver Enhancer
The Ruggedized Thermal Imaging Driver Enhancer is the ultimate solution for boosting driver capabilities in harsh and demanding environments. Powered by advanced thermal imaging technology, it delivers clear and precise vision even in complete darkness, fog, or smoke, significantly enhancing safety and situational awareness. Its rugged, shock-resistant, and weatherproof design ensures reliability in military and security operations, providing continuous performance around the clock. This strategic tool empowers vehicles with safe and efficient navigation during the toughest missions.
|
|
|
|
Ruggedized Thermal Imaging Driver Enhancer |
|
|
|
|
|
DESCRIPTION |
|
|
- The Driver Enhancer is a specially designed thermal imaging camera allowing the control of all types of vehicles in all kinds of environmental conditions, such as smoke, dust, snow, or total darkness. |
|
|
- An advantage of the camera is the hard carbon-coated protective window with an integrated defroster. |
|
|
- The vehicle's dimensions can be overlayed onto the thermal image to provide a perspective of movement for superior situational perception and awareness. |
|
|
- A variety of camera functions can be used via RS232 or TCP/IP interface (manual NUC, image inversion, flipping, zoom, etc.). |
|
|
- is supplied with an attachment adapter for proper installation in the vehicle. |
|
|

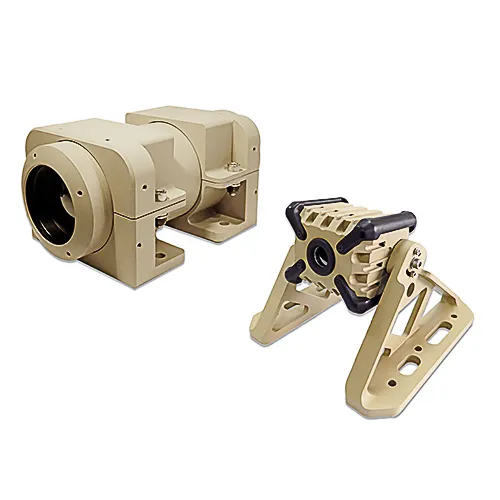

Ruggedized Thermal Cameras Series |
|
|
|
|
|
DESCRIPTION |
|
|
The selected region features the Series, a line of ruggedized thermal imaging cameras specifically designed for integration into armored vehicles like Humvees, tanks, and BTRs. |
|
|
Key Technical Features |
|
|
These uncooled thermal cameras are built for high-reliability surveillance in harsh environments: |
|
|
Imaging Performance: |
Equipped with detectors offering resolutions of either 384x288 or 640x480 pixels, with a thermal sensitivity (NETD) of <50 mK. |
|
Lens Options: |
Available with various focal lengths, including 100mm, 60mm, and wide-angle 19mm or 9mm options depending on the required field of view. |
|
Durability: |
The series features a ruggedized design that is resistant to the high shock and vibrations typical of heavy armored vehicle operations. |
|
Operational Modes: |
Includes essential functions like Black hot / White hot image polarity and is fully weather-resistant for all-condition performance. |
|
Primary Applications |
|
|
Military Vehicles: |
Integration into light and heavy armored specialized vehicles for situational awareness. |
|
Border Protection: |
Used in systems like the Aviv Perimeter Defense for short-to-mid-range surveillance. |
|
Day/Night Observation: |
Provides clear imaging through smoke, dust, and total darkness. |
|
Main features: |
|
|
- Ruggedized design. - Shock and vibrations resistant. - Different cameras for different operations. |
|
|
|
|
|
Thermal imaging camera |
|
|
Specially designed for the driver of the specialized vehicle with extremely wide field of view. |
|
|
Specification: |
|
|
Objective lens with focal length 19 mm or 9 mm for wide field of view. Detector 384x288 or 640x480. NETD <50 mK. Black hot / White hot function. Weather type function. Vehicle guideline and parking. Special ruggedized housing. |
|
|
Thermal imaging camera for observation or aiming at distances up to 1000 meters. |
|
|
Specification: |
|
|
Detector 384x288 or 640x480. NETD <50 mK. Focal length 60 mm. Black hot / White hot function. Weather type function. Ballistic reticle (optional). Special ruggedized housing. |
|
|
Thermal imaging camera for observation or aiming at distances up to 2000 m |
|
|
Specification: |
|
|
Detector 384x288 or 640x480. NETD <50 Mk. Focal length 100 mm. Black hot / White hot function. Weather type function. Ballistic reticle (optional). Special ruggedized housing. |
|
