14.5 X 114 MM SNIPER RIFLE
This high-caliber sniper rifle is purpose-built for extreme long-range precision and tactical superiority. Featuring a reinforced barrel, advanced optical scope, and a bipod stand for maximum stability, it delivers unmatched accuracy in specialized military and defense operations. The metallic finish underscores its durability, while the ergonomic design ensures operator control during extended missions. Engineered for elite marksmen, this rifle combines cutting-edge engineering with reliable performance for critical engagements at extended distances.
|
|
|
|
14.5 X 114 MM SNIPER RIFLE |
|
|
|
|
|
DESCRIPTION |
|
|
- Recoil system for recoil reduction. Bipod, which provides additional stability and comfort. Butt, with retractable and height-adjustable rear support for precise screw adjustment of the rifle. Easy for disassembling, cleaning, and maintenance. |
|
|
- Available Picatinny rails for mounting optical sights, bipods, handles, or other accessories. |
|
|
- The sniper rifle set does not include optical sights. It can be mounted with any type of sniper optics that have the suitable mount. |
|
|
- The sight is intended for use on sniper rifles of different calibers. |
|
|
- The sight has variable magnification on the range 5x to 25x, internal detuning from parallax when firing at different distances, a scale for an approximate evaluation of the range. |
|
|
- The sight has mechanism for inputting vertical and lateral corrections in increments of 1 cm per 100m distance. |
|
|
- MIL DOT reticle is illuminated; the brightness of the illumination is adjustable for different light conditions. |
|
|
TECHNICAL INFORMATION |
|
|
Caliber |
14.5 mm |
|
Cartridge |
14.5 x 114 mm |
|
Weight |
23 kg |
|
Overall Length |
1880 mm |
|
Barrel Length |
1270 mm |
|
Rifling |
8 grooves |
|
Picatinny rail |
Available in Mil standard for attaching optical and other |
|
Muzzle Velocity |
1000 m/s |
|
Bullet velocity at 300 m |
730 m/s |
|
Muzzle Energy |
30200 J |
|
Effective Range |
3000 m |
|
Maximum Range |
7000 m |
|
Armor penetration at 300 m |
28 mm |
|
Safety |
Type: Crossbutton |
|

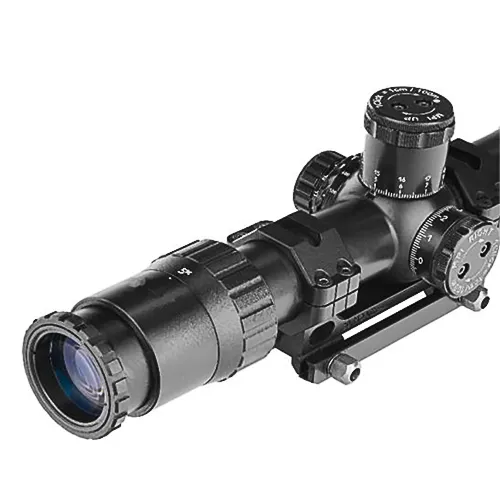

Optical Sight for Sniper Rifle |
|
|
Optical Range Magnification |
5-25x |
|
F.O.V. |
5x magnification - 3° 40' 25x magnification - 50' |
|
Objective lens diameter |
56 mm |
|
Exit pupil diameter |
5x magnification - 11.3 mm 25x magnification - 2.2 mm |
|
Eye relief |
86 mm |
|
Diopter adjustment range for eyepiece |
-2.5 to +2.5 dptr. |
|
Overall dimensions |
425 x 80 x 93 cm |
|
Weight |
1.1 kg |
