40MM HIGH VELOCITY
A versatile collection of 40mm and large-caliber ammunition, including training rounds, high-explosive grenades, smoke cartridges, CS gas munitions, and rubber projectiles. This comprehensive range highlights precision engineering and reliability, serving military, security, and crowd-control applications.
|
|
|||||||||||
|
40MM HIGH VELOCITY |
|||||||||||
|
|
|||||||||||
|
DESCRIPTION |
|||||||||||
|
a comprehensive family of 40mm grenade ammunition, typically used with low-velocity handheld launchers like the M203 or M320, and high-velocity vehicle-mounted systems like the Mk 19. |
|||||||||||
|

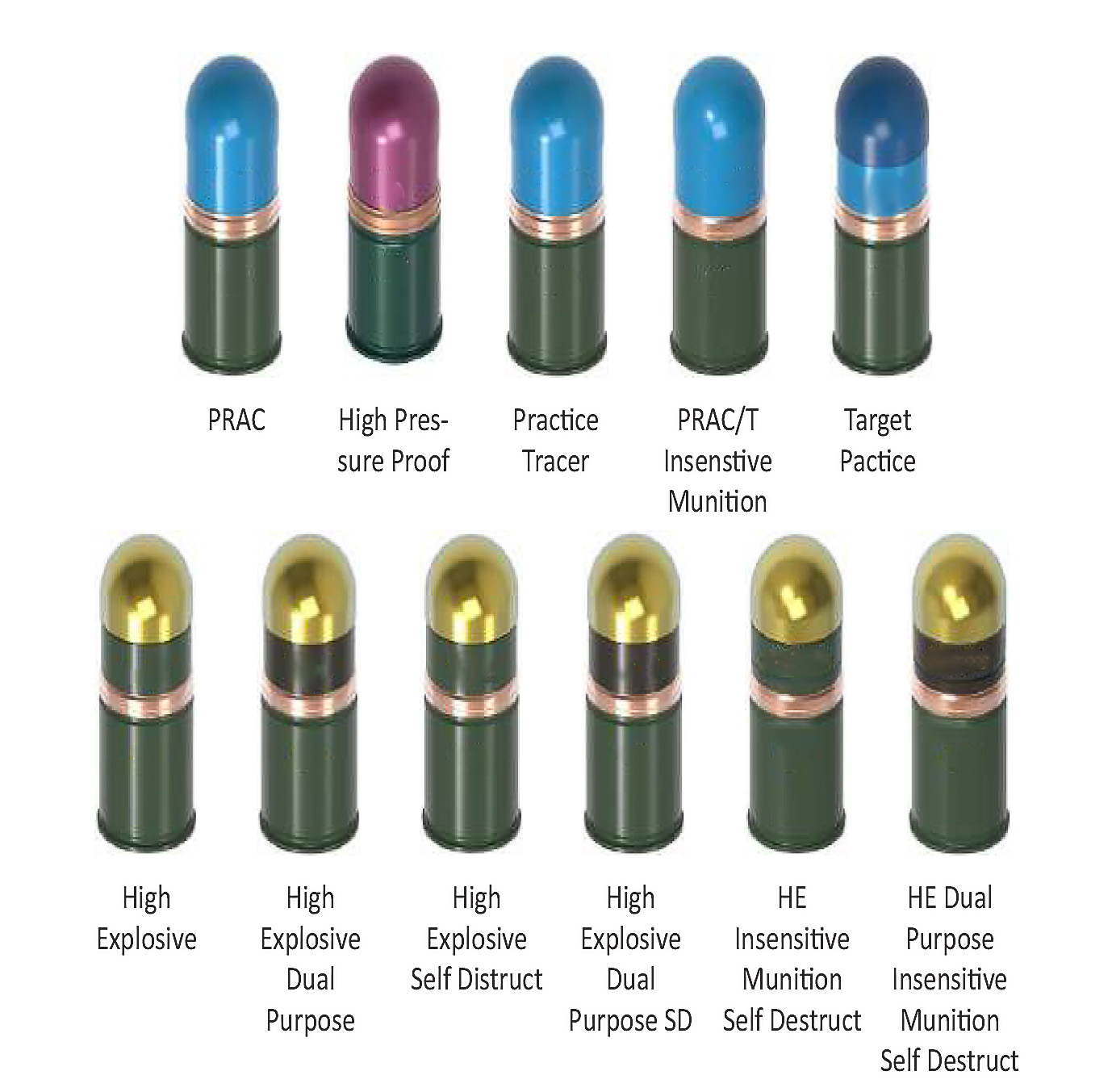

Ammunition Type: Practice Rounds (Blue/Lavender): |
Designed for training, featuring low-pressure proofing, drill dummies, and markers. |
||||||||||
|
Smoke Rounds (Green): |
Used for screening and obscuring, available in red, green, white, and red phosphorus. |
||||||||||
|
Combat Rounds (Gold): |
Includes High Explosive (HE) for personnel and High Explosive Dual Purpose (HEDP) for penetrating lightly armored vehicles. |
||||||||||
|
Velocity: |
These rounds typically come in Low Velocity (LV) for handheld launchers and High Velocity (HV) for vehicle-mounted machine guns. |
||||||||||
|
Key Specifications |
|||||||||||
|
Propulsion: |
Most use a High-Low Propulsion System, which keeps recoil low enough for infantry use while still providing effective range. |
||||||||||
|
Velocity Families: |
Low Velocity (LV): Muzzle velocity of ~78–84 m/s; effective up to 400 meters. Medium Velocity (MV): Intermediate rounds (~100 m/s) with ranges up to 800 meters. High Velocity (HV): Fired from machine guns at ~240 m/s; effective range exceeds 2,000 meters. |
||||||||||
|
Safety Mechanisms: |
Modern rounds feature arming distances (e.g., 14–28 meters) to ensure they do not explode too close to the user. |
||||||||||
|
|
|||||||||||
|
40MM HIGH VELOCITY |
|||||||||||
|
TECHNICAL INFORMATION |
|||||||||||
|
Item |
Prac |
HP Proof |
Prac/T |
Prac/T IM |
Target Practice |
HE |
HEDP |
HE SD |
HEDP SD |
HE IM SD |
HEDP IM SD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model Number |
M8902 |
M9767 |
M9914 |
M2034 |
M9426 |
M8842 |
M9219 |
M1624 |
M1141 |
M2039 |
M1812 |
|
Length (mm) |
112 mm |
||||||||||
|
Round Mass (g) |
331 |
325 |
330 |
340 |
330 |
350 |
346 |
332 |
348 |
333 |
3442 |
|
Operating Temperature |
-53°C to +71°C |
||||||||||
|
Shelf Life |
10 Years |
||||||||||
|
Performance |
|
|
8 sec Burn Time |
8 sec Burn Time |
140 dB Sound Intensity |
5 m Casualty Radius |
5 m Casualty Radius 50 mm RHA Penetration |
5 m Casualty Radius |
5 m Casualty Radius 50 mm RHA Penetration |
5 m Casualty Radius |
5 m Casualty Radius 50 mm RHA Penetration |
|
Fuze |
|
|
|
|
M9920 PD |
M8908 PD |
M1313 PD SD |
||||
|
No Arm Distance |
|
|
|
|
18 m |
18 m |
18 m |
||||
|
All Arm Distance |
|
|
|
|
40 m |
40 m |
40 m |
||||
|
self-Destruct Time |
|
|
|
|
NA |
NA |
25 – 32 se |
||||
|
Muzzle Velocity |
242 |
NA |
234,3 |
242 |
|||||||
|
Maximum Range |
2 200 m |
||||||||||
|
IMDG Explosive Class |
1.2C |
1.1E |
|||||||||
|
UN Code |
0328 |
0006 |
|||||||||
|
|
|||||||||||
|
APPLICATION |
|||||||||||
|
Round |
Prac |
HP Proof |
Prac/T |
Prac/T IM |
Target Practice |
HE |
HEDP |
HE SD |
HEDP SD |
HE IM SD |
HEDP IM SD |
|
Live Practice for Shooting Training |
X |
|
|
|
X |
|
|
|
|
|
|
|
Practice Tracer |
|
|
X |
X |
|
|
|
|
|
|
|
|
Practice Sound and Flash |
|
|
|
|
X |
|
|
|
|
|
|
|
Weapon Accept-trance |
|
X |
|
|
|
|
|
|
|
|
|
|
Anti-Personnel/Light Armored Vehicles |
|
|
|
|
|
X |
X |
X |
X |
X |
X |
|
Armored Steel/ Fortified Bunkers |
|
|
|
|
|
|
X |
|
X |
|
X |
|
Self-Destruct fuze |
|
|
|
|
|
|
|
X |
X |
X |
X |
|
Insensitive Munition |
|
|
|
X |
|
|
|
|
|
X |
X |
|
|
|||||||||||
