40MM MEDIUM VELOCITY

A complete range of 40mm and large-caliber ammunition, including training rounds, high-explosive grenades, smoke cartridges, CS gas munitions, and rubber projectiles. This collection showcases versatile military and non-lethal solutions, engineered for precision, reliability, and diverse operational needs in combat, training, and crowd-control scenarios.

40MM MEDIUM VELOCITY

DESCRIPTION

a comprehensive family of 40mm grenade ammunition, typically used with low-velocity handheld launchers like the M203 or M320, and high-velocity vehicle-mounted systems like the Mk 19.

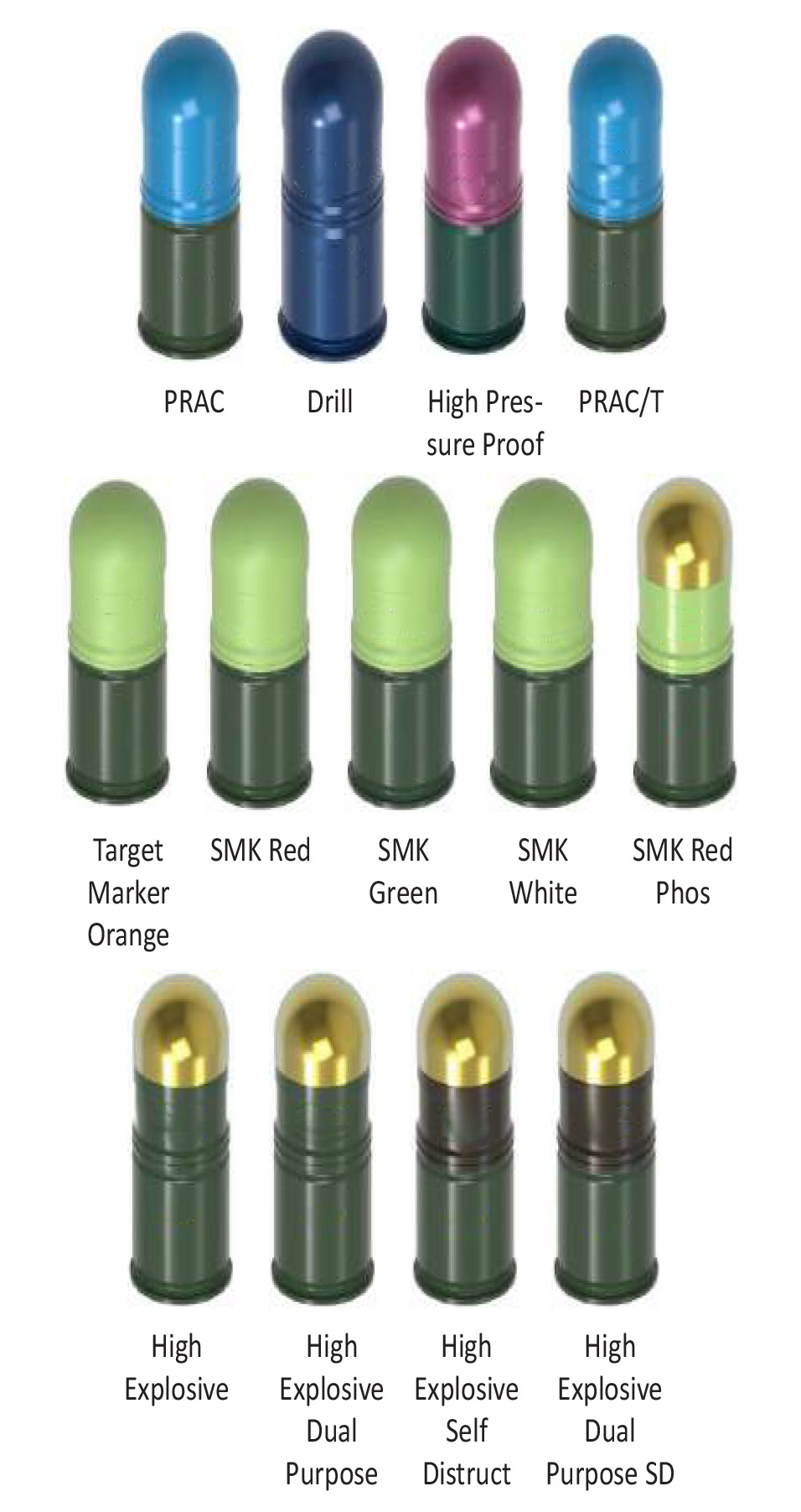

Ammunition Type: Practice Rounds (Blue/Lavender):

Designed for training, featuring low-pressure proofing, drill dummies, and markers.

Smoke Rounds (Green):

Used for screening and obscuring, available in red, green, white, and red phosphorus.

Combat Rounds (Gold):

Includes High Explosive (HE) for personnel and High Explosive Dual Purpose (HEDP) for penetrating lightly armored vehicles.

Velocity:

These rounds typically come in Low Velocity (LV) for handheld launchers and High Velocity (HV) for vehicle-mounted machine guns.

Key Specifications

Propulsion:

Most use a High-Low Propulsion System, which keeps recoil low enough for infantry use while still providing effective range.

Velocity Families:

Low Velocity (LV): Muzzle velocity of ~78–84 m/s; effective up to 400 meters.

Medium Velocity (MV): Intermediate rounds (~100 m/s) with ranges up to 800 meters.

High Velocity (HV): Fired from machine guns at ~240 m/s; effective range exceeds 2,000 meters.

Safety Mechanisms:

Modern rounds feature arming distances (e.g., 14–28 meters) to ensure they do not explode too close to the user.

40MM MEDIUM VELOCITY

TECHNICAL INFORMATION

Item

Prac

Drill

HP Proof

Practice Tracer

TM Orange

Red Smoke

Smoke Green

White Smoke

Smoke Red Phos

HEDP

HE SD

HEDP SD

Model Number

M0820

M2117

M2116

M9917

M0916

M0913

M0914

M0915

M0912

M0821

M0822

M1617

M1616

Length (mm)

112

109

112

114

Round Mass (g)

265

273

265

250

257

269

270

Operating Temperature

-46°C to +71°C

-30°C to +71°C

-46°C to +71°C

Shelf Life

10 Years

Performance

8 sec

Burn

Time

20 sec Burn Time

1,5 m Scattering

Radius

5 m Casualty

Radius

5 m Casualty

Radius 50 mm

RHA Penetration

5 m Casualty

Radius

5 m Casualty

Radius 50 mm

RHA Penetration

Fuze

M1005 PD

M1407 PD SD

No Arm Distance

13 m

All Arm Distance

35 m

self-Destruct

17 - 25 sec

Muzzle Velocity

124

118

124

Maximum Range

800 m

IMDG Explosive

Class

1.2C

1.3G

1.2G

1.1E

UN Code

0328

0016

0009

0006

APPLICATION

Round

Prac

Drill

HP Proof

Practice Tracer

TM Orange

Red Smoke

Smoke Green

White Smoke

Smoke Red Phos

HEDP

HE SD

HEDP SD

Inert Practice for Weapon Training

Live Practice for Shooting Training

Practice Tracer

Weapon Accept-trance

Target Marking/ Signal/ Comms

Trench Clearing/ Smoke Screen

Anti-Personnel/Light Armored Vehicles

Armored Steel/ Fortified Bunkers

Self-Destruct fuze
