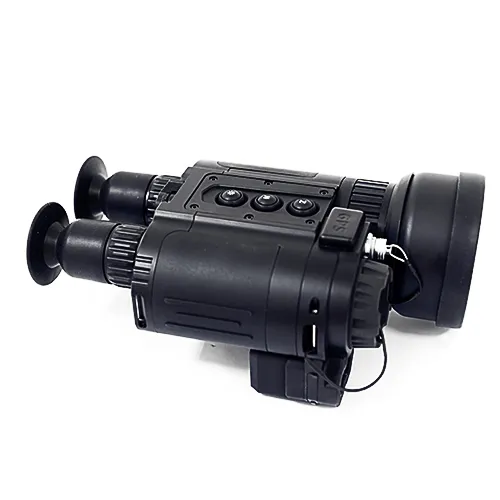

THERMAL IMAGING BI-OCULAR
The Thermal Imaging Bi-Ocular is engineered to deliver exceptional detection and imaging capabilities across all lighting conditions, including complete darkness, smoke, and fog. Utilizing advanced thermal imaging technology, it enables long-range target identification by tracking precise heat signatures. Its dual-eye design ensures comfortable viewing and reduced eye strain, while the rugged, weather-resistant housing guarantees durability in demanding environments. This device is an ideal solution for military, security, and reconnaissance operations requiring reliable performance around the clock.
|
|
||
|
THERMAL IMAGING BI-OCULAR |
||
|
|
||
|
DESCRIPTION |
||
|
The TIB (THERMAL IMAGING BI-OCULAR) is a single-channel uncooled thermal imaging bi-ocular, designed especially for military and law enforcement personnel for prolonged observation and reconnaissance. |
||
|
It allows target detection and recognition in completely passive mode at short and mid-range distances. The sensitive detector and intelligent digital video processing provide a crisp image at any time and in all weather conditions. Additional features like image filters and weather type modes optimize the picture according to the customer's needs and changing weather conditions. The TIB has an ergonomic design enabling ease of use and comfortable handheld observation, as well as a tripod mount for prolonged reconnaissance |
||
|
Key Features and Specifications |
||
|
Imaging Technology: |
It uses an uncooled thermal imaging sensor, allowing for target detection and recognition in completely passive mode across short and mid-range distances. |
|
|
Resolution and Optics: |
Common configurations include a 640x480 detector resolution and objective focal lengths of either 75mm or 100mm. |
|
|
Integrated Tools: |
Features a built-in Laser Range Finder (LRF), GPS, and a Digital Magnetic Compass (DMC) for precise tactical data. |
|
|
Performance: |
It is capable of human detection at distances greater than 2700 meters. |
|
|
Connectivity: |
Supports Wi-Fi video streaming and remote control, along with video output capabilities. |
|
|
TECHNICAL INFORMATION |
||
|
Type |
Microbolometer |
|
|
Pixel Count (Resolution) |
640x480 |
|
|
Pitch size |
17 μm |
|
|
Spectral Response |
8 + 14 εm |
|
|
Thermal Sensitivity (NETD) |
< 50 mK @ F/1.0 |
|
|
Brightness / Contrast |
Automatic / Advanced Image Processing |
|
|
Image Polarity |
User Selectable White Hot / Black Hot |
|
|
Focus |
Manual |
|
|
Menu |
OSD |
|
|
Start-up time |
<10 sec |
|
|
IFOV |
0.17 mRad |
|
|
NUC |
Automatic / Manual |
|
|
Focal Length of Objective Lens |
100 mm |
|
|
FOV |
6.2°(H) X 4.6°(V) |
|
|
F/# |
1.25 |
|
|
Material and coating |
Germanium hard carbon coating on the external surface |
|
|
Human Detection Range* |
>2500m |
|
|
Human Recognition Range* |
>930m |
|
|
Vehicle Detection Range* |
>6500m |
|
|
Vehicle Recognition Range* |
>2200m |
|
|
Eyepiece diopter adjustment |
From 4 to +3 dpt. |
|
|
Analog Video Output Format |
CCIR (PAL) or RS-170 (NTSC) |
|
|
Display Type |
OLED 800x600 |
|
|
Snapshot function |
Yes, built-in memory for 2000 images |
|
|
Video recording |
Yes, built-in memory for 1 hour video |
|
|
Digital zoom |
x2, x4 |
|
|
Remote control and visualization |
Remote control through RS-USB interface and analog video output for visualization |
|
|
Wireless video streaming and remote control |
Built-in Wi-Fi module |
|
|
GPS |
Built-in GPS |
|
|
DMC (Digital Magnetic Compass) |
Built-in DMC |
|
|
Bluetooth |
Built-in Bluetooth module |
|
|
Power Source |
4 x 18650 Li-Ion rechargeable batteries |
|
|
Operating time |
6 Hours Continuous @ 25°C with 4 x 18650 Li-Ion rechargeable batteries and all OFI features |
|
|
Operating Temperature Range |
From -30°C to +50°C |
|
|
Storage Temperature Range |
From -50°C to +60°C |
|
|
IP Protection rating |
IP 66/IP 67 optional |
|
|
Weight with batteries |
<2000g |
|
