Anti Drone System

EARLY WARNING OPTICAL DRONE DETECTION SYSTEM

EARLY WARNING OPTICAL DRONE DETECTION SYSTEM

-   Up to 2 km Range

-   Full 360° Coverage

-   Provides Video Evidence

-   UAV Detection & Classification

-   98% Detection & Classification § Accuracy

-   Easy integration

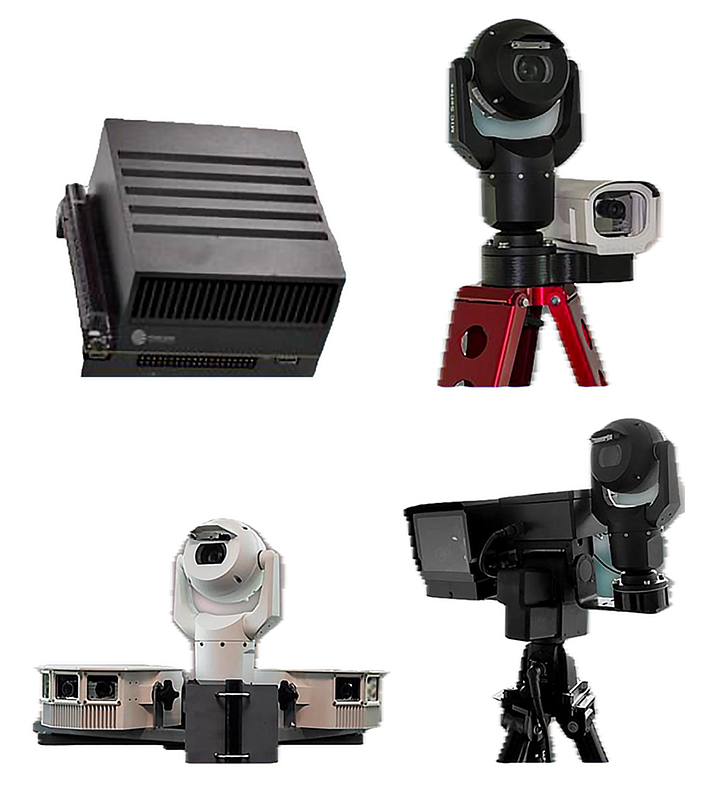

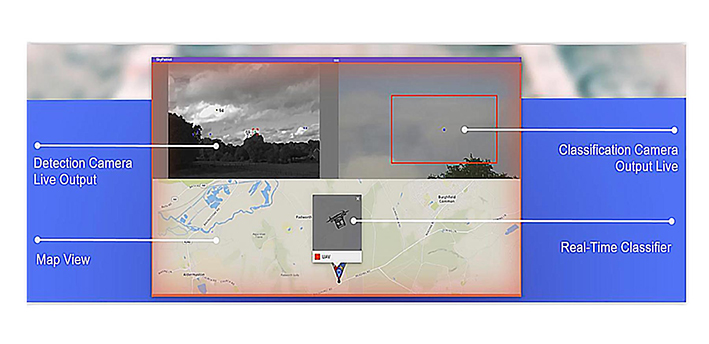

Optical detection, classification and tracking

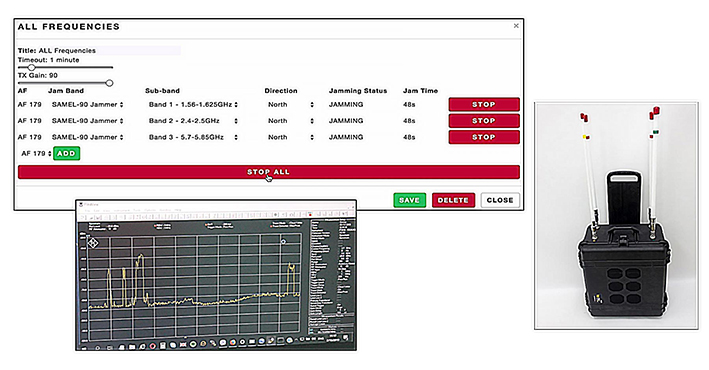

HIGH EFFECTIVE JAMMING

Jamming system frequency band, MHz

-   Band N: 1 – all types navigation satellites bandwidths

-   Band N: 2 – Wi-Fi 2400 MHz

-   Band N: 3 – Wi-Fi 5800 MHz

-   Band N: 4 – 433 MHz

-   Band N: 5 – 915 MHz

-   Option for other frequency bands up to end user request

Output RF power

Depending from the end user requirements

Installation

Depending from the end user requirements

Type of antennas

Maximum jamming range

Directional and/or omnidirectional antennas up to 6 km depending from the conditions

Capabilities

-   Log-in access to the system

-   Noise alarm for the detection

-   Alert notification (Send E-mail and/or SMS) to the dedicated personnel when UAVs enter in the predefined geographical area

-   Map of the guarded area and potential critical geofence locations for alarms

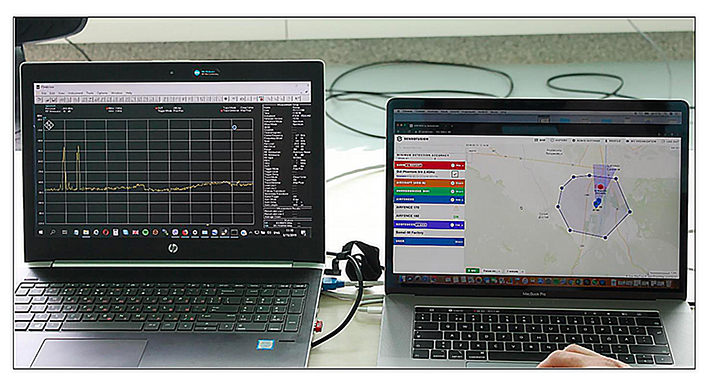

-   Web user interface for viewing of the location of the detected drone UAVs on the map

-   UAV detection log that can be used for prosecution

-   Internet connection is required for using the web user interface Company server or end user server depending on the requirements

-   Different options for LAN connectivity

-   Wide options for the detection frequency bands and respective jamming modules bandwidths

-   Easy installation

-   Possibility for increasing of the number of the RF sensors

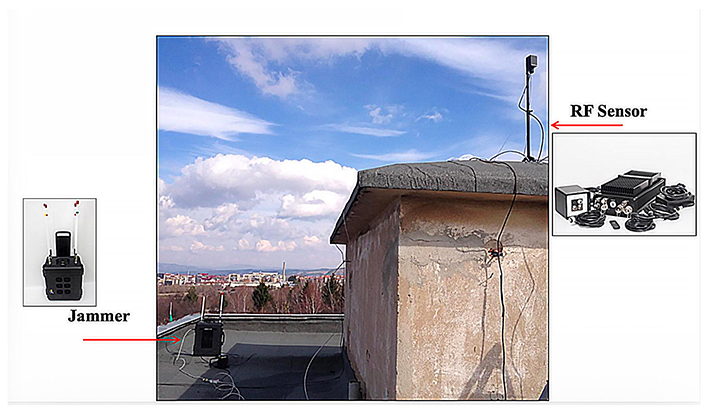

-   Different options for installation - fixed, field, mobile

-   Installation kit depending on the requirements and missions

Anti Drone System – working algorithm

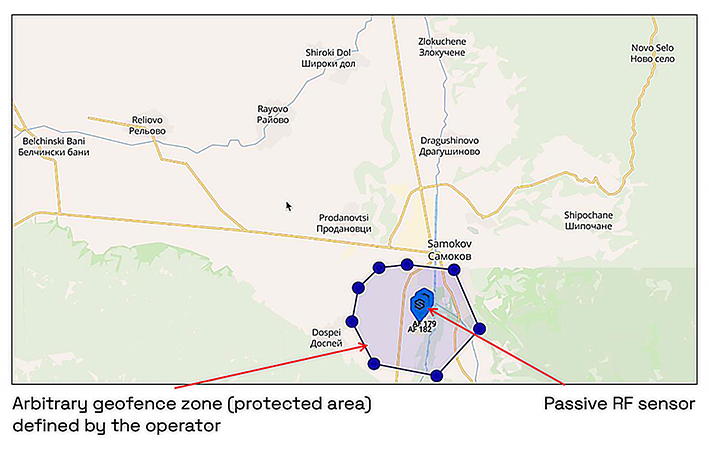

Map of the area – Passive RF sensor working for the drone detection

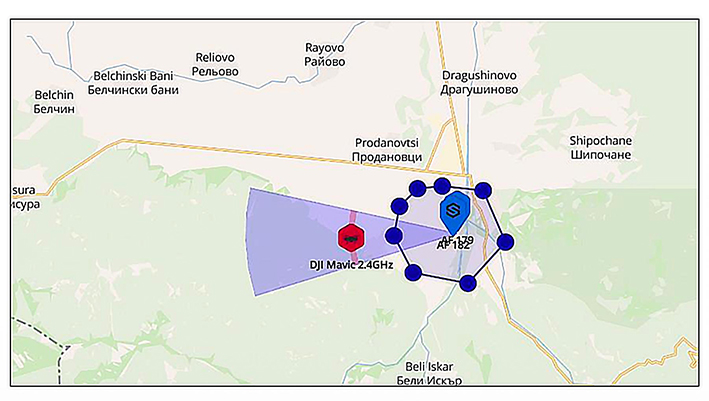

-   RF sensor detected drone type DJI Mavic

-   RF sensor starts tracking the drone

-   RF sensor detected drone type DJI Mavic

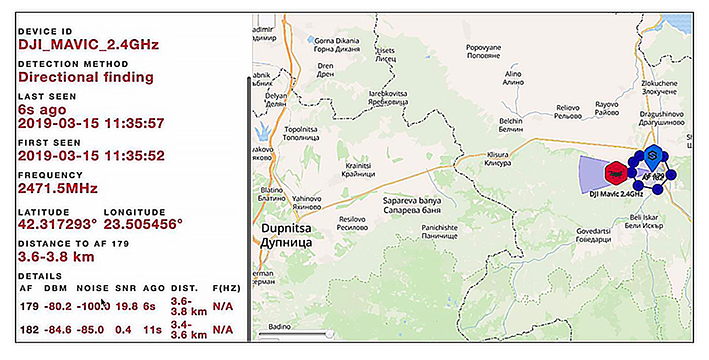

-   RF sensor starts tracking the drone – information regarding drone and its allocation is available

-   Operator can start jamming or continue tracking

-   RF sensor detected drone type DJI Mavic

-   RF sensor start tracking of the drone

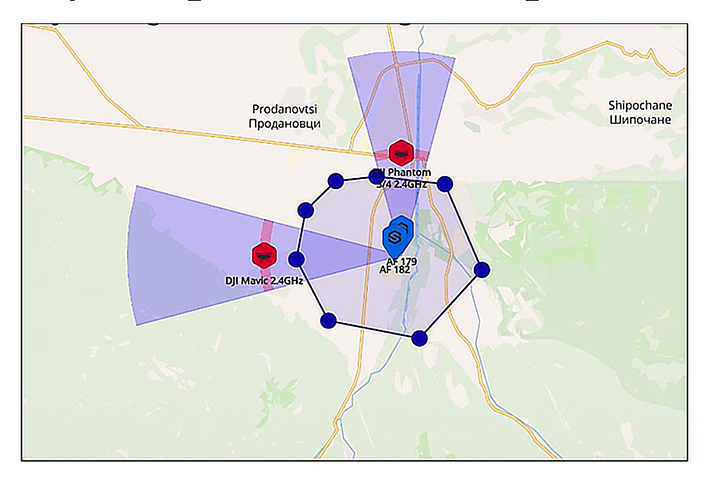

-   RF sensor detected second drone type DJI Phantom - information regarding second drone and its allocation is available

-   RF sensor tracking both of the drones • Operator can start jamming or continue tracking

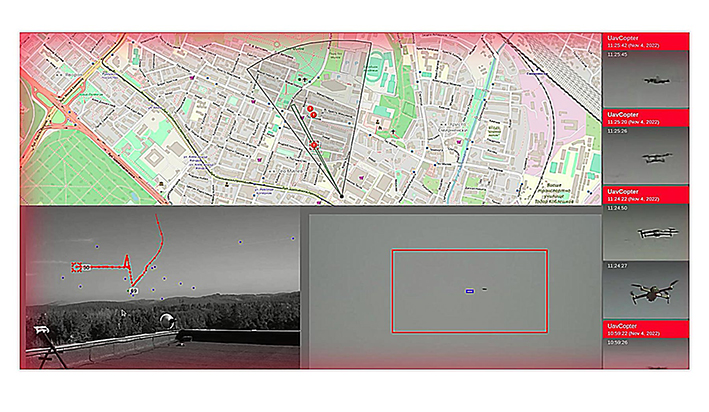

-   EOS with Artificial intelligence (AI) classifies and tracks drone/drones

-   The operator decides to start jamming with all of the jamming modules or

only with some of them

-   Jamming time is predefined or can be controlled manually

-   After jamming tine end the RF Sensor continue working in passive mode
